KXO-3P basic type product overall and installation size and basic electric control drawing

Price:	10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KXO/3P

Production Capacity: 100000PCS/PER MONTH

Delivery Date: 30 days or customized

Poles Number: 3

by overall installation size: 125 type and 45 type

Application: modern construction

current limit coefficient: less than 0.2

expect short circuit current breaking time: 2-3ms

Intelligent controller rated current Ie: 0.4/1/2.2/4/6.3/12/16/18/25...

Means of Transport: Ocean,Land,Air

Packing: Neutral or customized

Type: Others

Brand Name: CHKX

Basic configuration: main part+intelligent contr...

By short circuit breaking capacity: economic type and basic typ...

Pole: 3,4

main part rated current In: 12/16/18/32/45/63/100/125A

Control power voltage: M:AC220V, Q:AC380V

CPS control and protective switching main feature realize control and protective function of single structure type product integration

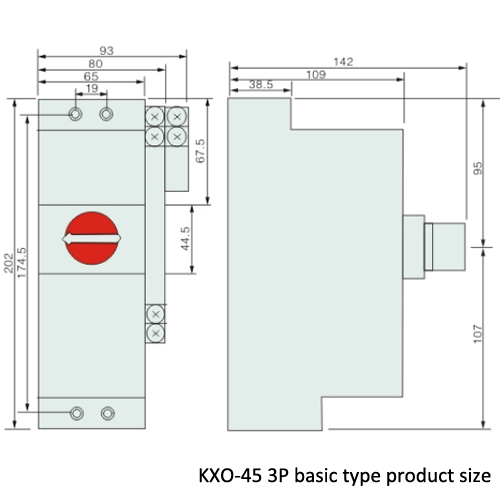

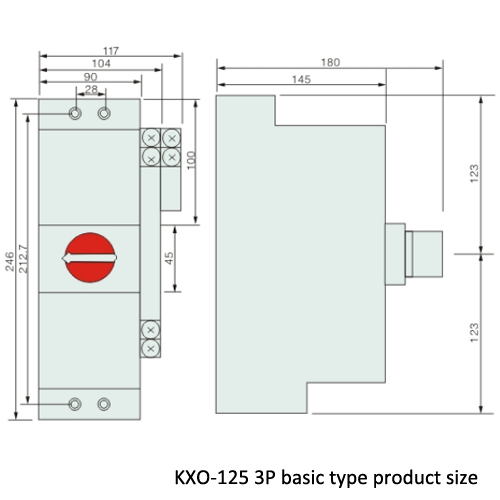

◎3P basic type product overall and installation size:

KXO/3P basic type product overall and installation size and basic electric control drawing

◎Basic electric control drawing:

KXO/3P basic type product overall and installation size and basic electric control drawing

Control circuit power supply	Control circuit protection	Control circuit coil control	Self-locking	Auxiliary signal	Alarm signal
work	stop	Short circuit	overload

Control

circuit power supply

Control

circuit protection

Control circuit coil control

Self-locking

Auxiliary signal

Alarm signal

work

stop

Short circuit

overload

KXO/3P basic type product overall and installation size and basic electric control drawing

◎Basic electric control drawing:

Control circuit power supply	Control circuit protection	Control circuit coil control	Self-locking	Auxiliary signal	Alarm signal
work	stop	Short circuit	overload

Control

circuit power supply

Control

circuit protection

Control circuit coil control

Self-locking

Auxiliary signal

Alarm signal

work

stop

Short circuit

overload

KXO/3P basic type product overall and installation size and basic electric control drawing

Ordering instruction

Customer should figure out KXO control and protective switching product Model No., specification, short trip mechanism rated current, intelligent controller rated working current, load characteristic, coil control voltage, wiring way etc content.

For example 1: order KXO-100Y/B63/02MF means: KXO fire fighting type product, breaking capacity 15kA, main part trip mechanism rated current 100A, 3P with 3P protection, digital tube type intelligent controller rated working current 63A, 2 normally open 2 normally close +1 short circuit 1 fault auxiliary contact, coil control power supply voltage AC220V, with fire fighting function.

For example 2: order KXON-45C/33E40/06ML means: KXO reversible type product, breaking capacity 35KA, main trip mechanism rated current 45A, 3P with 3P protection, liquid type intelligent controller rated current 40A, 3 normally open 2 normally close+ 1 short circuit 1 fault auxiliary contact, coil control power supply voltage AC220V, with residual current protection function.
